SANIFORCE 5:1 SANITARY DRUM UNLOADER
Quick Knockdown Pump for Sanitary Applications
Evacuation rates up to 14 gpm (53 lpm). Siphon viscosities up to 1,000,000 cps.
The SaniForce 5:1 Sanitary Drum Unloader features an on-demand workflow capability and can also be taken apart quickly for applications that require frequent sanitation. Available in double ball and priming piston designs for additional system flexibility.
Features
SaniForce 5:1 Sanitary Drum Unloader:
  • Evacuation rates up to 14 gpm (53 lpm), running at 60 cpm
  • 400 psi (28 bar, 2.8 MPa), outlet pressure
  • One size follower plate and seal to accommodate straight-sided and tapered drums
  • Sanitary flange clamps for quick disassembly
  • Unloading of somewhat flowable to moderately flowable fluids, from the original 55-gallon containers without diluting the material
  • Suitable to pump products such as: jam and jelly, icing and frosting, soft peanut butter, heavy chocolate, tomato paste, corn syrup, toothpaste and cosmetics
Wiper seal:
  • FDA-compliant neoprene inflatable ram plate seal
  • Faster change-out of empty containers
  • Liner guard prevents bags from entering pump
  • Evacuation rates up to 99%
PRODUCT PDF FILES :
PRODUCT VIDEOS :

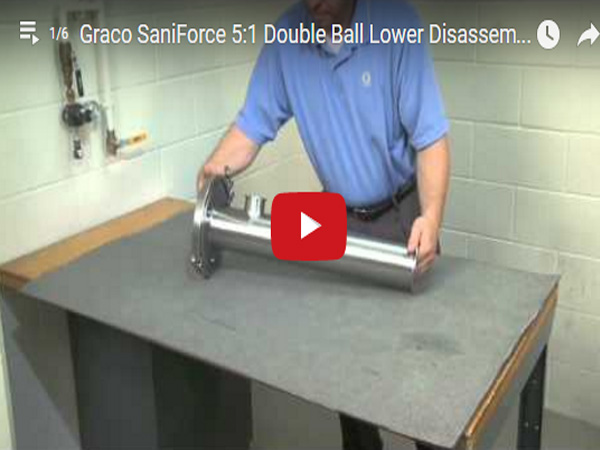

Graco SaniForce 5 1 Double Ball Lower Disassembly
